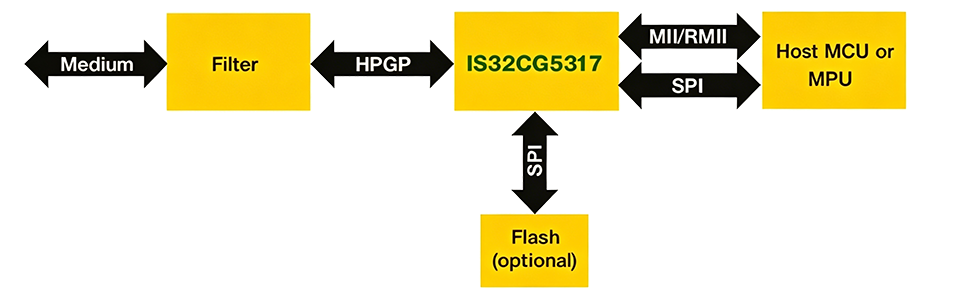

IS32CG5317 is a HomePlug Green PHY low-power communications transceiver designed for application in automotive (EV) or charger (EVSE). It has SPI/MII/RMII host interfaces for connection to MCU or MPU.
FEATURES
- Automotive Grade: AEC-Q100 Grade 2
- Operating ambient temperature of -40°C to 105°C
- ISO 15118 / DIN 70121 compliant
- HomePlug Green PHY compliant
- HomePlug AV and IEEE 1901 capable
- Low power
- EP-LQFP 80-pin package
- Single 25MHz crystal
- Single 3.3V power rail – internal DC/DC stepdown converters integrated
- Communication Frequency Band 2 to 30 MHz
- Integrated AFE, transmit power of 0dBm, ±1dB flatness accuracy and ability to add external line driver for additional boost
- Can operate over lines with AC or DC power
- Zero-crossing synchronization
- SPI Interfaces
- 1 SPI Slave interface
- 1 SPI Master interface
- Ethernet PHY interface
- MII 10/100Mbps
- RMII 100Mbps
- Boot from host or from external (optional) flash
- General Purpose I/Os
- JTAG
- UART
- Zero-cross synchronization
TYPICAL APPLICATIONS
Automotive charge control module; suited for both in-vehicle (EV) and charger (EVSE)
ORDERING INFORMATION
| Part No. | Package |
|---|---|
| IS32CG5317-LQLA2 | Tray |
| IS32CG5317-LQLA2-TR | Tape and Reel |
